HEGOA-20

Trigano carport - 22,79m² (overall surface)


RÉFÉRENCE : HEGOA-20

Fiche mise à jour le : 20/10/2022 09:54:28

GARANTIES :

15 YEARS (orange) : limited warranty on aluminium parts
limited warranty on aluminium parts
10 YEARS (orange) : limited warranty on polycarbonate panels
limited warranty on polycarbonate panels
2 YEARS (orange) : steel brackets
steel brackets

DESCRIPTIF

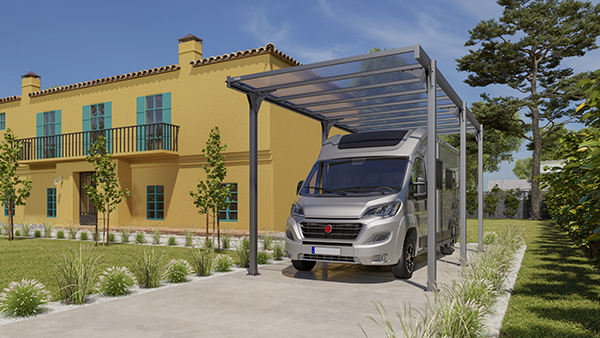

Metal carport 22,79 m² : protects your camper car from snow, rain, hail and UV radiations.
Carport with apex metal framed roof and 6 metal posts.
Roof guttering with level outlets.
DESIGNED and MADE in France.

Advantages of this carport :
+ Sleek design
+ Easy assembly
+ Easy cleaning
+ Stainless steel screws and bolts + anchoring kit included
+ Provides protection to the vehicle all year round.

Additional information:
Colour : anthracite
Materials : Aluminium/ Stainless steel / Polycarbonate
Aluminum thickness : 1.4 to 2,5 mm
Passage height : 3.07 m
Passage width : 2.87 m
Snow resistance : 10 cm
Wind resistance : 90 km/h
Foot section : 10 x 10 cm

Technical features:
Overall surface: (L x W) : 3,17 x 7,19 x 3,17 m is 22,79 m²
Roof surface :(L x W x H) : 2,97 x 7,04 m is 20,91 m²
Passage height: 3.07 m
Passage width: 2.87 m
Headband height: 17 cm
Headband thickness: 6 cm
Overall surface: 22,79 m²
Foot section: 10 x 10 cm

INFORMATIONS TECHNIQUES

PRODUIT
Dimensions
(L x l x h)
719 x 317 x 317
Cubage Non communiqué
Poids 215 Kg
COLIS Colis 1 Colis 2 Colis 3 Colis 4
Dimensions
(L x l x h)
312 x 78 x 46
---
---
---
Cubage
---
---
---
---
Poids 230 Kg
---
---
---


DOCUMENTS A TÉLÉCHARGER

NOTICE : Notice HEGOA-20
